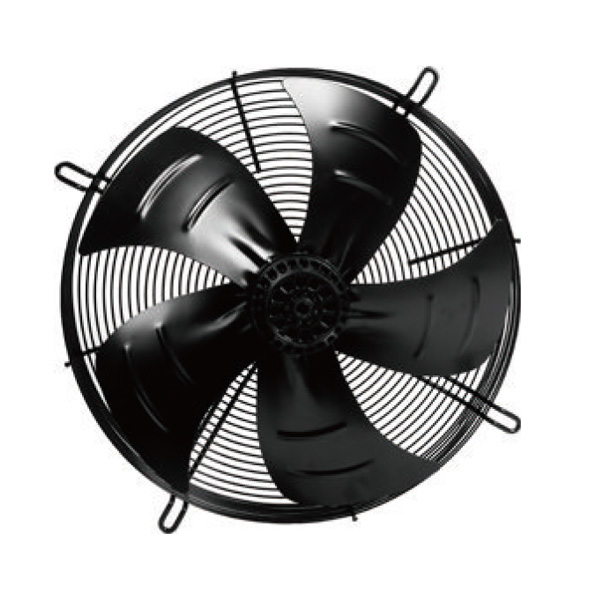

Axial Fan
• Type of Protection: Ip54
• Insulation Class:“B” “F”
• Mode of Operation: S1
• Bearings: Maintenance-free ball bearings
• Blades: steel plate
• Perm. amb. temp.: -40ºC ~ +60ºC
• Insulation Class:“B” “F”
• Mode of Operation: S1
• Bearings: Maintenance-free ball bearings
• Blades: steel plate
• Perm. amb. temp.: -40ºC ~ +60ºC

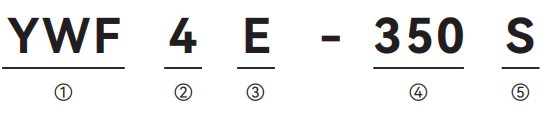

1、AC Induction asynchronous external rotor fan motor
2、Motor poles
3、E-Single phase capactior operation, D-Three phase asynchronous op
4、The dlameter of the fan blade
5、Air direction: S-Sucking, B-Blowing
