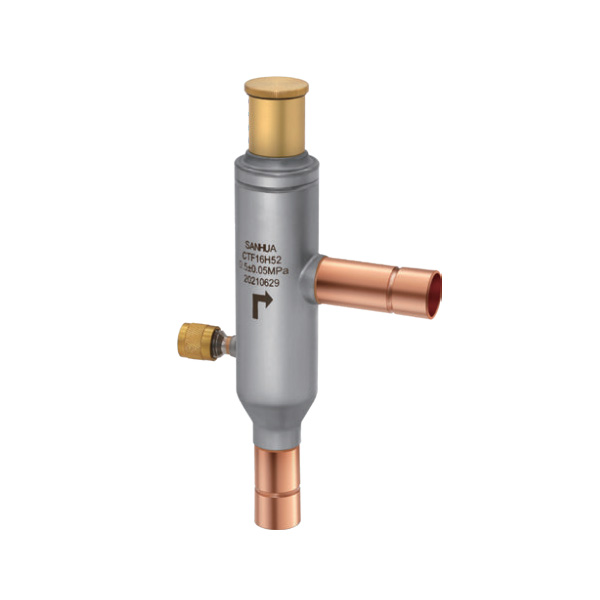

![CTF evaporating pressure regulating valve](../upload/pic/2023062814563375764.jpg)
CTF evaporating pressure regulating valve
CTF evaporating pressure regulating valve is installed at the outlet of the evaporator to maintain a constant evaporating pressure and prevent the evaporating pressure from being too low. It can also be used for one compressor to configure two or more refrigeration systems with different evaporation pressures to achieve different evaporation temperatures.
Refrigerant: HCFC, HFC, as R22, R134a R404A R407C R410A
Temperature of Refrigerant: -30
Working Temperature: -30 ~ +60ºC
Humidity: lower than 100%

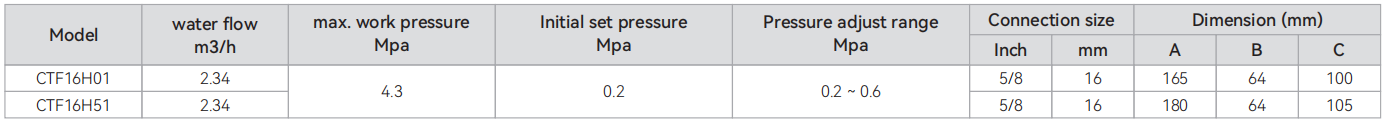

![1687935446109264.png image.png](/upload/image/20230628/1687935446109264.png)
Notes: * at setting inlet pressure = 0.2Mpa+0.29Mpa
