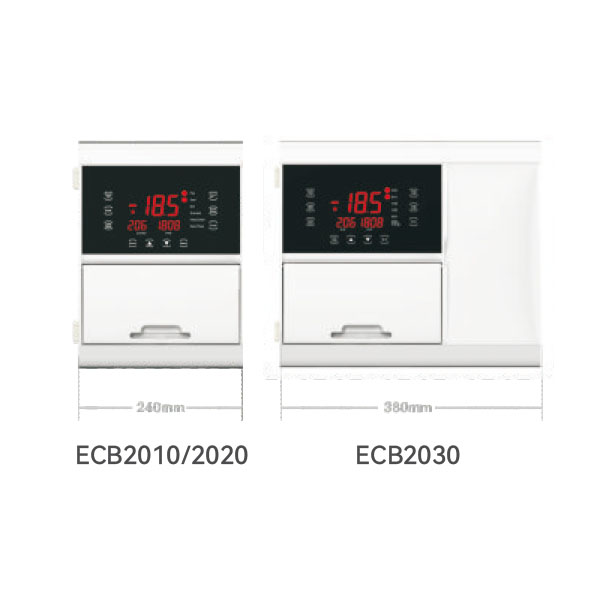

Electric Control Box ECB-2000 series
• Power supply: 380VAC±10%/50Hz
• Temperature measuring range: -45°C~100°C
• Temperature accuracy:±1°C
• Temperature control range:-40°C~85°C
• Temperature resolution: 0.1°C
• Current measuring range: 0~80A
• Current measuring accuracy: ±2A (0~30A), ±3%
• (within the nominal range of mutual inductor)
• Current display resolution: 0.1A
• Ambient temperature: 0°C~40°C
• Sensor: NTC (thermistor) (10kΩ/25°C, B value 3435K)
• Communication interface: RS485
• Temperature measuring range: -45°C~100°C
• Temperature accuracy:±1°C
• Temperature control range:-40°C~85°C
• Temperature resolution: 0.1°C
• Current measuring range: 0~80A
• Current measuring accuracy: ±2A (0~30A), ±3%
• (within the nominal range of mutual inductor)
• Current display resolution: 0.1A
• Ambient temperature: 0°C~40°C
• Sensor: NTC (thermistor) (10kΩ/25°C, B value 3435K)
• Communication interface: RS485
