GBC series Ball Valve or GBC model Ball Valve
Technical Parameters:
Appicable Refrigerants: HCFC, HFC (Customer choice)
Applicable Medium Temperature: -40ºC~+120ºC
MAX. Working Pressure: 4.5MPa
MAX. Compression Pressure: 6.5MPa
Yearly Leakage of Refrigerant: ≤2g R22/a
Two types of Model GBC ball valve are available:

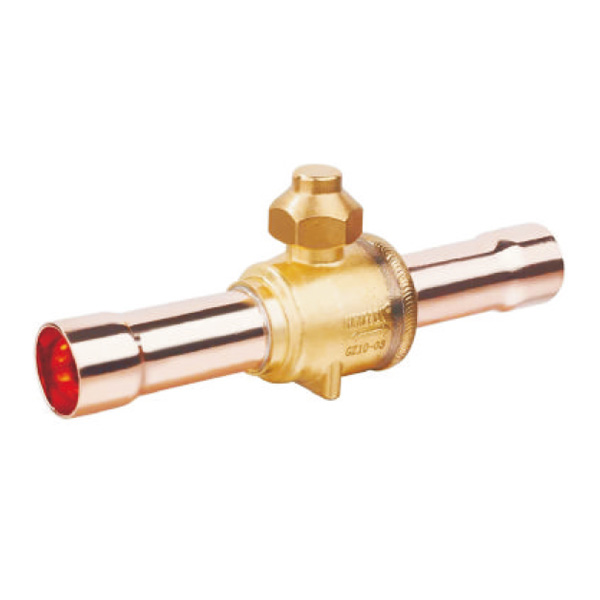

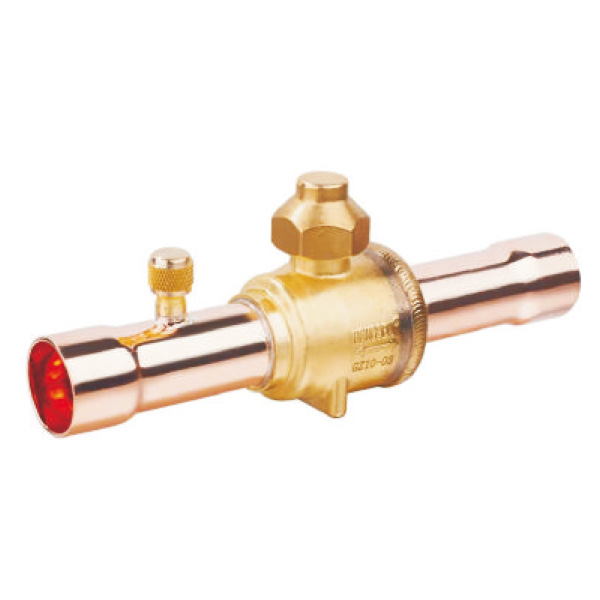

one is equipped with the charging and inspection port,the other is not equipped with the changing and inspection port.
