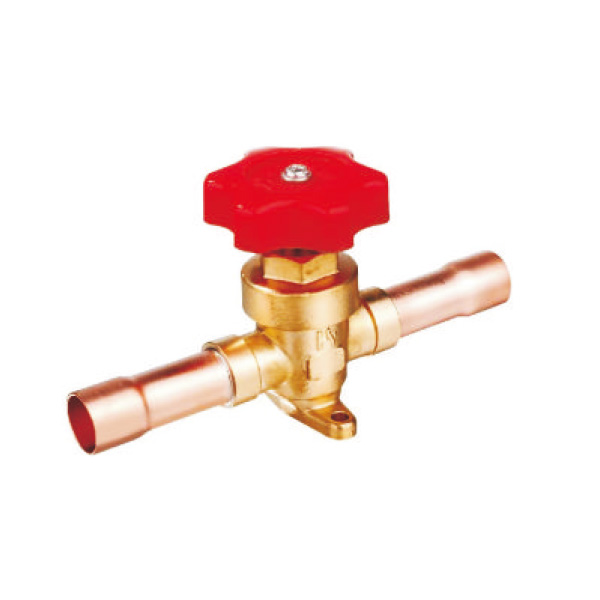

HT Hand Valve
Technical Parameters
Appicable Refrigerants: HCFC, HFC
Applicable Medium Temperature: -25ºC~+100ºC
MAX. Working Pressure: 3.0MPa
Scope of Operating Pressure: -0.1MPa~2.1MPa
MAX. Hydrostatic Test Pressure: 4.5MPa
Appicable Refrigerants: HCFC, HFC
Applicable Medium Temperature: -25ºC~+100ºC
MAX. Working Pressure: 3.0MPa
Scope of Operating Pressure: -0.1MPa~2.1MPa
MAX. Hydrostatic Test Pressure: 4.5MPa
• There are 2 pieces of stainless steel diaphragm to prevent the hand valve from leakage during the whole service life of the hand valve.
• The elastic sealing is used on the valve port so that the hand valve could be shut off by small torque.
• The special valve bonnet design a sued to prevent the hand valve from water or dust penetration.
• The hand valve is easy to be operated for full open or half open just by turning the valve stem for one and half turn.
