Insulated Copper Tubes

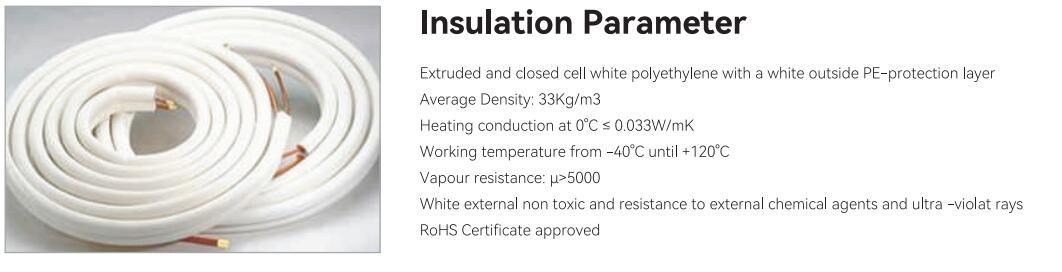

Extruded and closed cell white polyethylene with a white outside PE-protection layer
Average Density: 33Kg/m3
Heating conduction at 0°C ≤ 0.033W/mK
Working temperature from -40°C until +120°C
Vapour resistance: µ>5000
White external non toxic and resistance to external chemical agents and ultra -violat rays RoHS Certificate approved

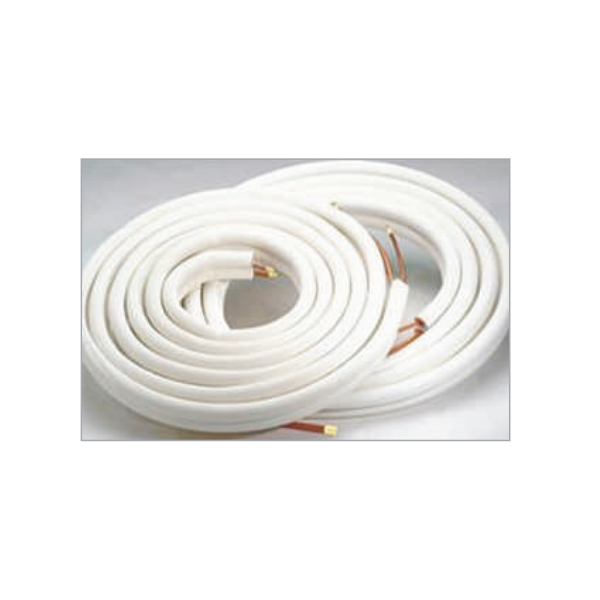

Pair Coils
Inside cleaned copper tubes for refrigerant gas and closed at the extremities.
Phosphorus deoxidized soft temper copper pipe DHP99.9 (C1200)
Dimensions and features according to ASTM B280, EN 12735-1, As1571, JIS 3300

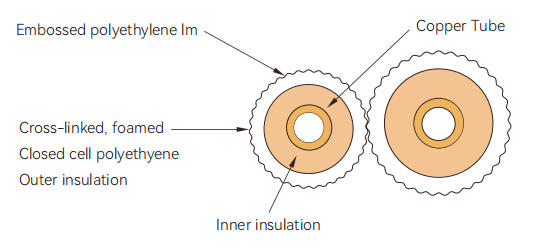

Three-layer Insulation
![1684238181196108.png image.png](/upload/image/20230516/1684238181196108.png)

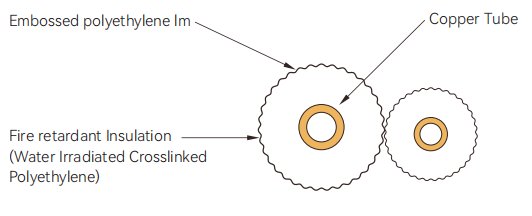

Two-layer Insulation
![1684238206159182.png image.png](/upload/image/20230516/1684238206159182.png)
