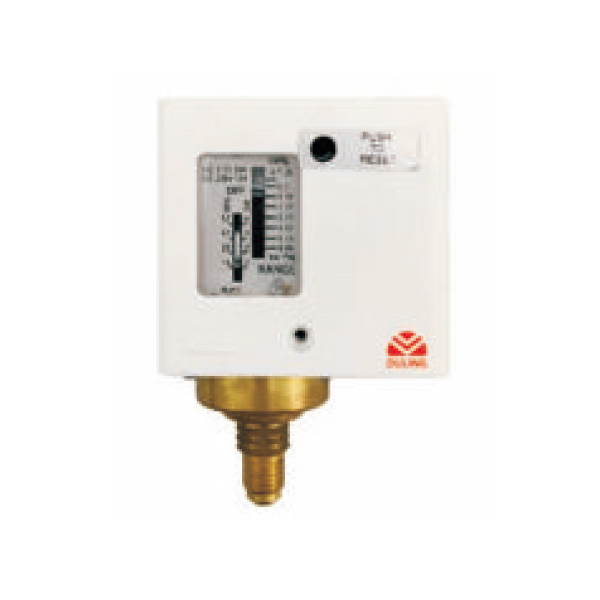

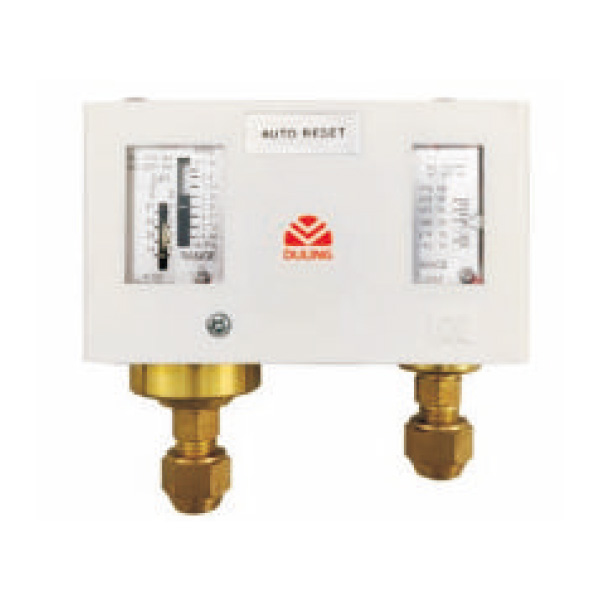

Pressure Controller

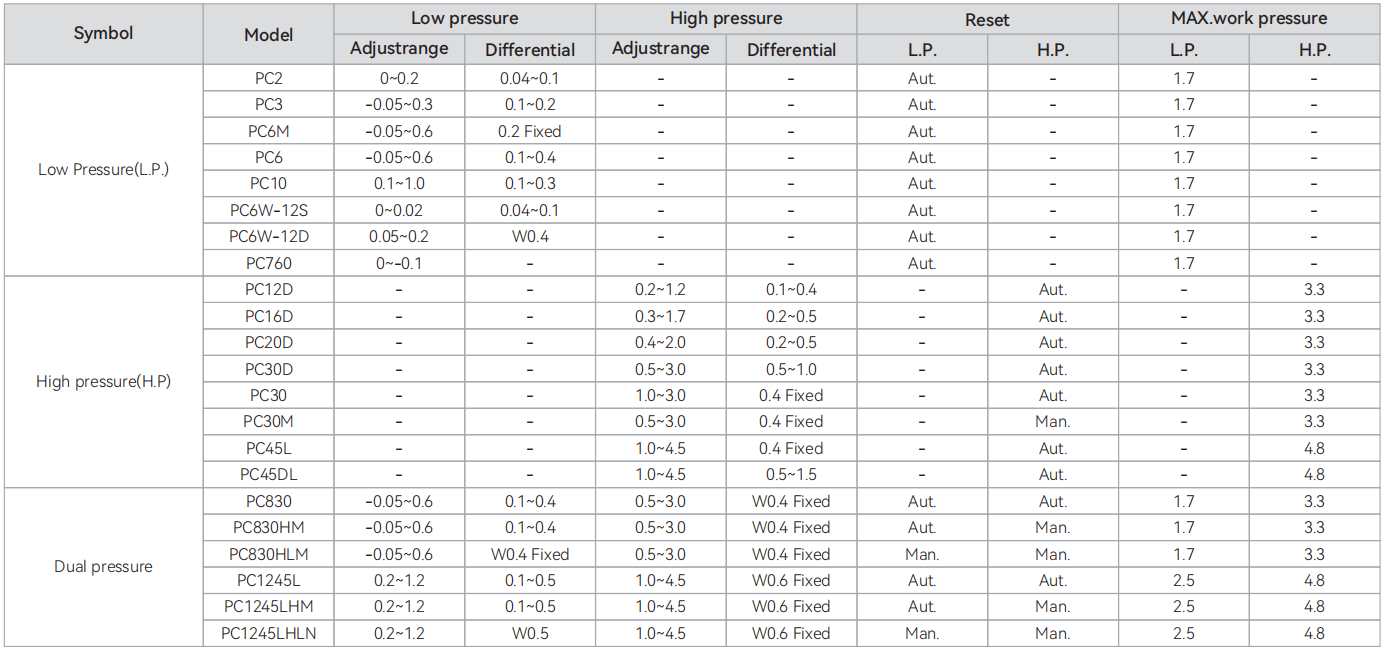

Technical parameters
Ambient temperature: -40 ~ +60
Medium temperature: -40 ~ +120
The wire connected to the inlet hole is 15mm dia.
Max: working pressure
L.P.: 1Mpa
H.P.: 3Mpa
Max: testing pressure
L.P.: 1.65Mpa
H.P.: 3.3Mpa
