SGN series Ball Valve or SGN model Ball Valve
Technical Parameters
Appicable Refrigerants: HCFC and HFC
Applicable Medium Temperature: -40ºC~+80ºC
MAX. Working Pressure: 4.5MPa
MAX. Compression Pressure: 6.8MPa
Yearly Leakage of Refrigerant: ≤2g R22/a
Appicable Refrigerants: HCFC and HFC
Applicable Medium Temperature: -40ºC~+80ºC
MAX. Working Pressure: 4.5MPa
MAX. Compression Pressure: 6.8MPa
Yearly Leakage of Refrigerant: ≤2g R22/a

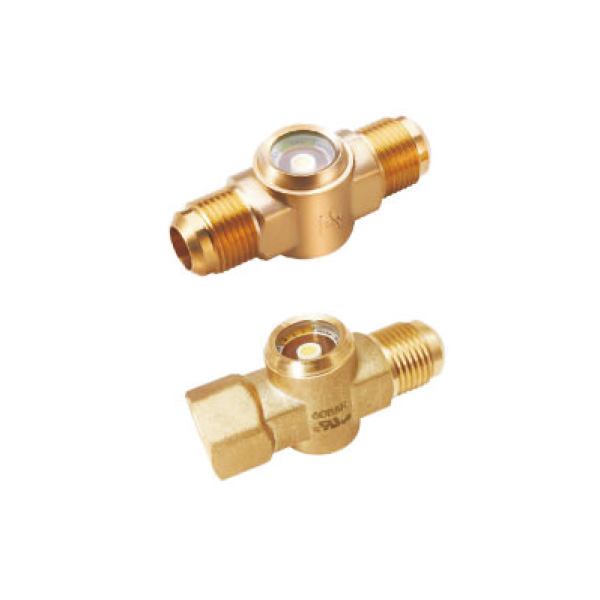

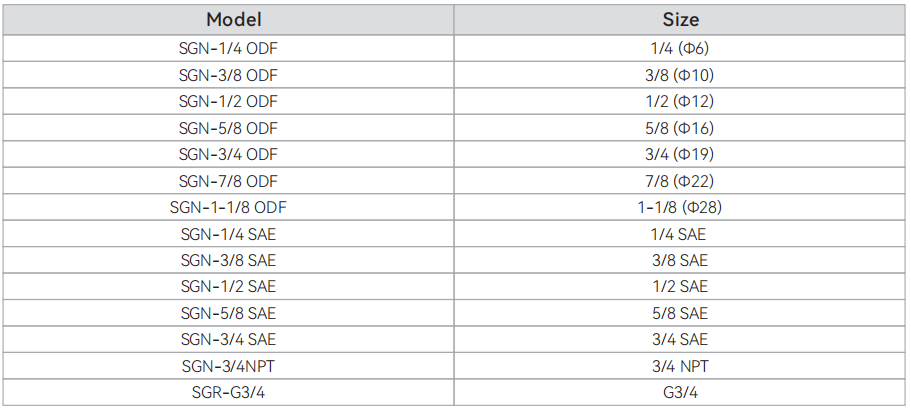

Model SGN
• Be applicable to HCFC / HFC refrigerants.
• Indicate high water cut in system if any.
• Indicate no overcooling in refrigerant liquid.
• Indicate insufficient charging of refrigerant if any.
• Both welded and threaded connections are available.
Model SGR
• Be applicable to HCFC / HFC refrigerants.
• Indicate the liquid level in the liquid drum.
• Indicate the oil level in the compressor crankcase.
• NPT threaded connection.
Note:
For the fully enclosed compressor, generally the allowable water cut is in a range 30~75ppm, but for other types of compressor,
the water cut will be higher slightly. For an effective protection, it is necessary to monitor the indicator carefully and replace
• Be applicable to HCFC / HFC refrigerants.
• Indicate high water cut in system if any.
• Indicate no overcooling in refrigerant liquid.
• Indicate insufficient charging of refrigerant if any.
• Both welded and threaded connections are available.
Model SGR
• Be applicable to HCFC / HFC refrigerants.
• Indicate the liquid level in the liquid drum.
• Indicate the oil level in the compressor crankcase.
• NPT threaded connection.
Note:
For the fully enclosed compressor, generally the allowable water cut is in a range 30~75ppm, but for other types of compressor,
the water cut will be higher slightly. For an effective protection, it is necessary to monitor the indicator carefully and replace
the drier immediately if the color is changed into yellow.
