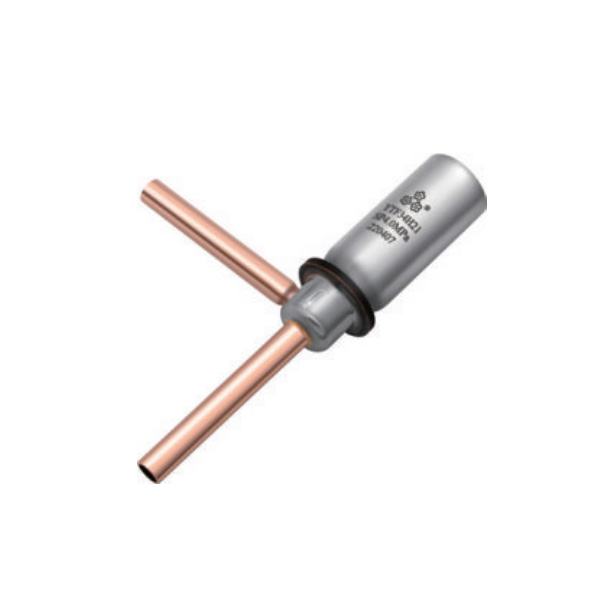

YTF series Offload Valves

YTF series offload valves are installed in the compressor suction and discharge bypass pipelines of refrigeration, air conditioning and other systems, and release the overload pressure of the compressor to the low pressure side by bypass, and always keep the discharge pressure below the specified pressure to protect the compressor Not overloaded.

Refrigerant: R22, R134a, R407C, R410A, R32

Max working pressure: 4.5Mpa

Medium Temperature: -30°C ~ +120°C

Ambient Temperature: -30°C ~ +70°C

Humidity: lower than 100%
